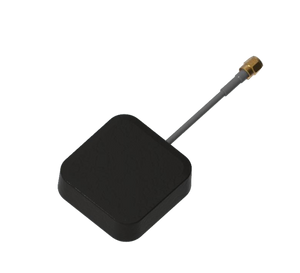

Multi-band GNSS high precision Antenna AT-608
|
Constellation/Freq |
GPS L1/L2 GLONASS L1/L2 BEIDOU B1/B2/B3 GALILEO E1/E5b |
|
|
Gain (dBi) |
4,0 |
|
|
Antena AR (dB) |
≤3 0 |
|
|
Error central de fase (mm) |
± 2 |
|
|
Polarization |
Right circular polarization |
|
|
Impedance |
50Ω |
|
|
LNA gain (dB) |
36±2 |
|
|
Figure (dB) |
≤1 8 |
|
|
VSWR |
≤2 0 |
|
|
Volta (V) |
3,0 V-6,0 V |
|
|
Current |
≤45mA |
|
|
Conector |
SMA-J |
|
|
Size (mm) |
φ68*27 MM |
|
|
Weight (g) |
200 | |
|
Temperature operation (℃) |
-40-+ 70 |
|
|
Temperature storage (℃) |
-55-+ 85 |
|
|
Waterproof |
IP67 |
