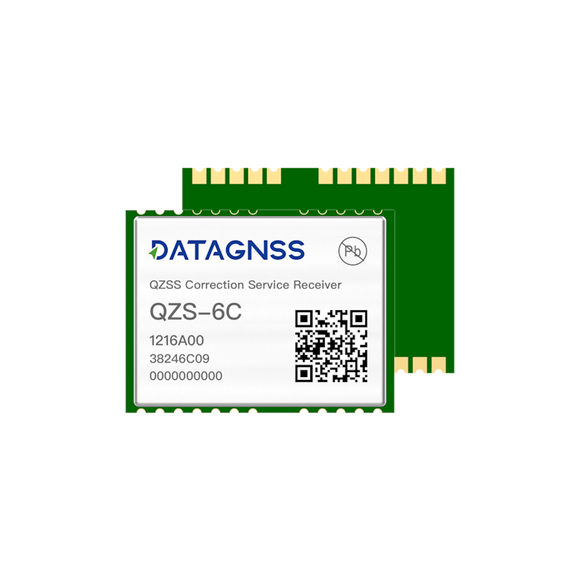

QZSS correction service receiver QZS-6C
QZSS correction service receiver
The QZS-6C receiver supports QZSS L6 signals, the Centimeter Level Augmentation Service (CLAS), and the experimental MADOCA service, output L6 correction service message data. The CLAS offers high-accuracy augmentation for GNSS receivers and is freely available across mainland Japan. When paired with other PPP-enabled receivers, it forms a complete, standalone high-precision system, delivering free access to high-accuracy correction services and achieving centimeter-level GNSS accuracy.
The Option "MADOCA-PPP/MALIB TEST KITS" designs to learn PPP for QZSS, only available in Japan. It include the total test kits:
- Raspberry Pi 4B 8G SBC
- NANO RTK Receiver
- GNSS Antenna
- QZS-6C corrections receiver
- TF card with OS image
- RF cables
- Other RF accesseries
The Kits is out-of-box with MALIB PPP software inside.
If you want to inqury the details , please contact info#datagnss.com.
Order Information
PN | Features |
QZS-6C-00 |
12*16mm, L1 and L6, QZSS correction service, 115200bps, default L6E firmware |
MADOCA-PPP/MALIB TEST KITS |
QZS-6C with D10P, PPP ready, MALIB-PPP support, Raspberry Pi-based |
Related resource
QZS-6C wiki page, https://docs.datagnss.com/gnss/qzs6c_l6_receiver
QZS-6C datasheet [QZSS QZS-6C L6 correction service receiver]
MALIB-PPP project support QZS-6C, https://github.com/datagnss/MALIB
