NANO Heading RTK Receiver Kit HED-10K
PRODUCT DESCRIPTION
NANO Heading RTK Receiver Kit HED-10K is the latest high-precision RTK/Heading receiver. It can simultaneously support tracking all visible navigation satellites, including GPS, QZSS, BDS, GALILEO, GLONASS, and IRNSS.

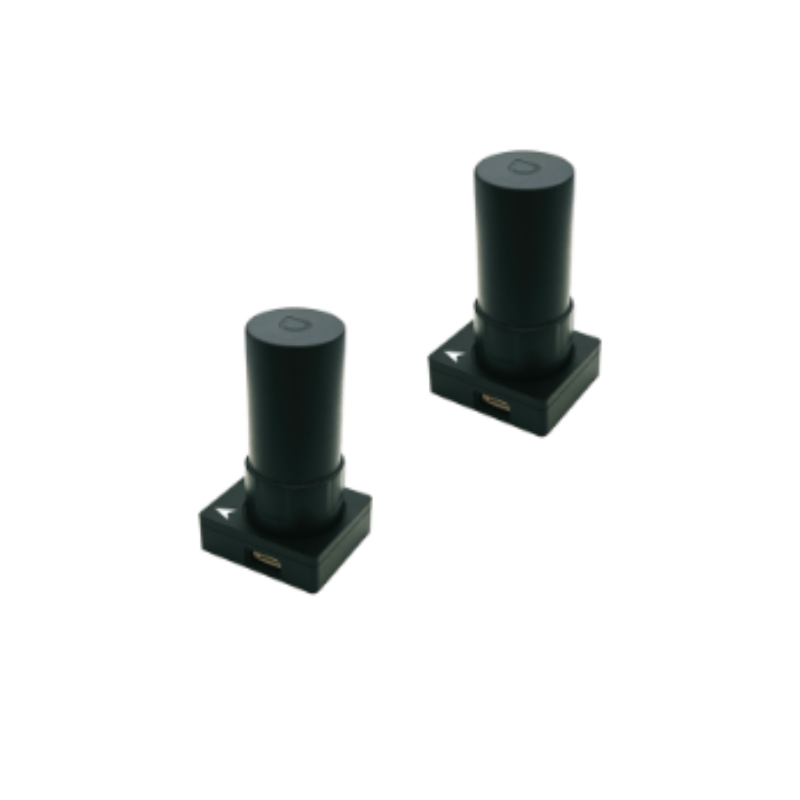

The HED-10K set includes two receivers, HED-10M-K and HED-10S-K, for easy use and flexible placement.
The HED-10K Kit supports heading data output at up to 5Hz and operates immediately upon power-on.
Ordering Info
| SKU | Configuration |
| NANO-HED10K-00 | RTK/Heading Receiver, Helix antenna, 6P connector, L1/L5, 5Hz |
Specifications
| NANO-HED10K | |
| Channels | 128 hardware channels |
| GNSS SoC | CYNOSURE IV |
| Frequencies | GPS L1,L5 QZSS L1,L5 BDS B1,B2a GAL E1,E5a |
| Interface | 6P 1.25 connector |
| RTK Initial | <10s |
| Accuracy |
RTK: 10mm+1PPM(H) |
| Update rate | 5Hz default |
| Port | UART |
| Antenna Type | Helix Antenna for RTK |
| Power supply | 4.75~5.25V |
| Current | ~200mA |
| Dimensions | 35*30mm |
| Weight | 20g |
Package
- HED-10M-K * 1
- HED-10S-K * 1
- Helix Antenna * 2
- 4P-125-GH-100 * 1
- 6P-125-GH-20 * 2
- 3M adhesive *2
How to use
- Connect two receivers with 100cm 4P cable
- Place two receivers with the specific length like 98-105cm
- Connect HED-10M-K UART1 to your host device to get the NMEA data including Heading data
- Place HED-10S-K to the heading orientation
